Featured TURNTABLES

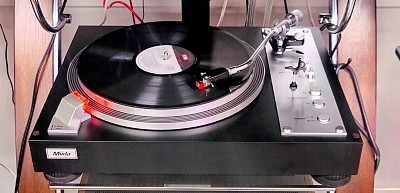

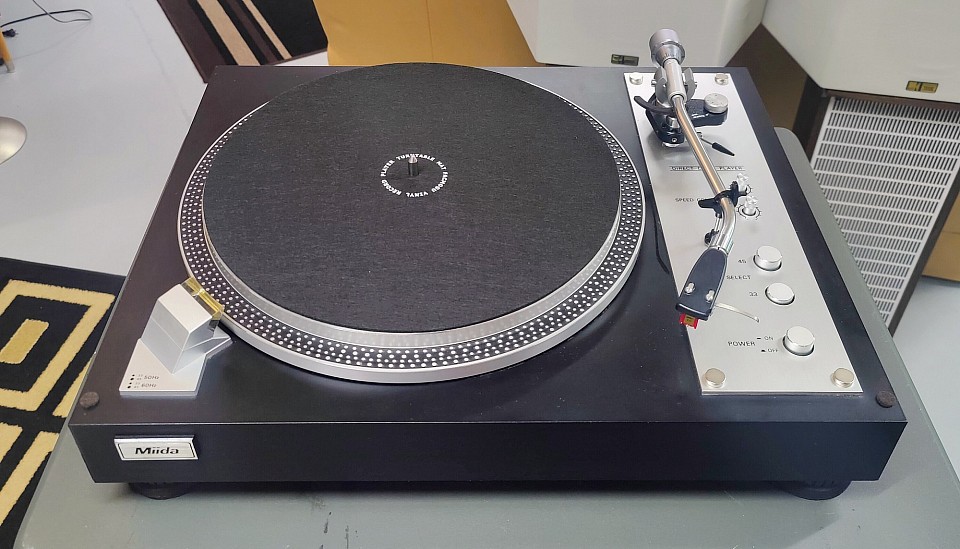

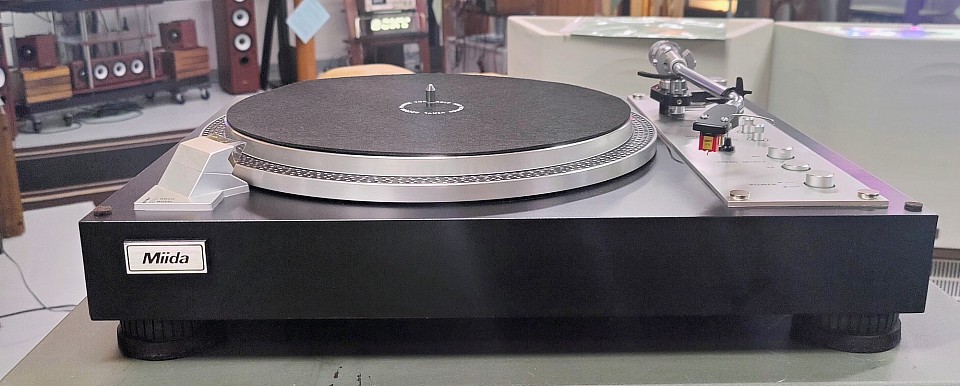

Miida T3115R / aka Denon GT-700)
('76-'78) $750 (w/ Garrott P77 cartridge & stylus)
Considered by many as the "most beautifully designed turntable" we currently have in the shop...in perfect cosmetic condition, fully serviced and operating perfectly, this stunning Miida T3115R is the twin brother of the Denon GT-700.
Under the Miida badge it was destined for export only while the GT-700 was available only in Japan. Unlike most turntables made in Japan by CEC, the Miida T3115R was built by Denon for Miida under a non-competitive contractual agreement.
This very rare Miida T3115R stereo turntable is a manually-operated, servo-controlled, direct-drive, 2 speed (33, 45 rpm) table powered by a six-pole synchronous motor.

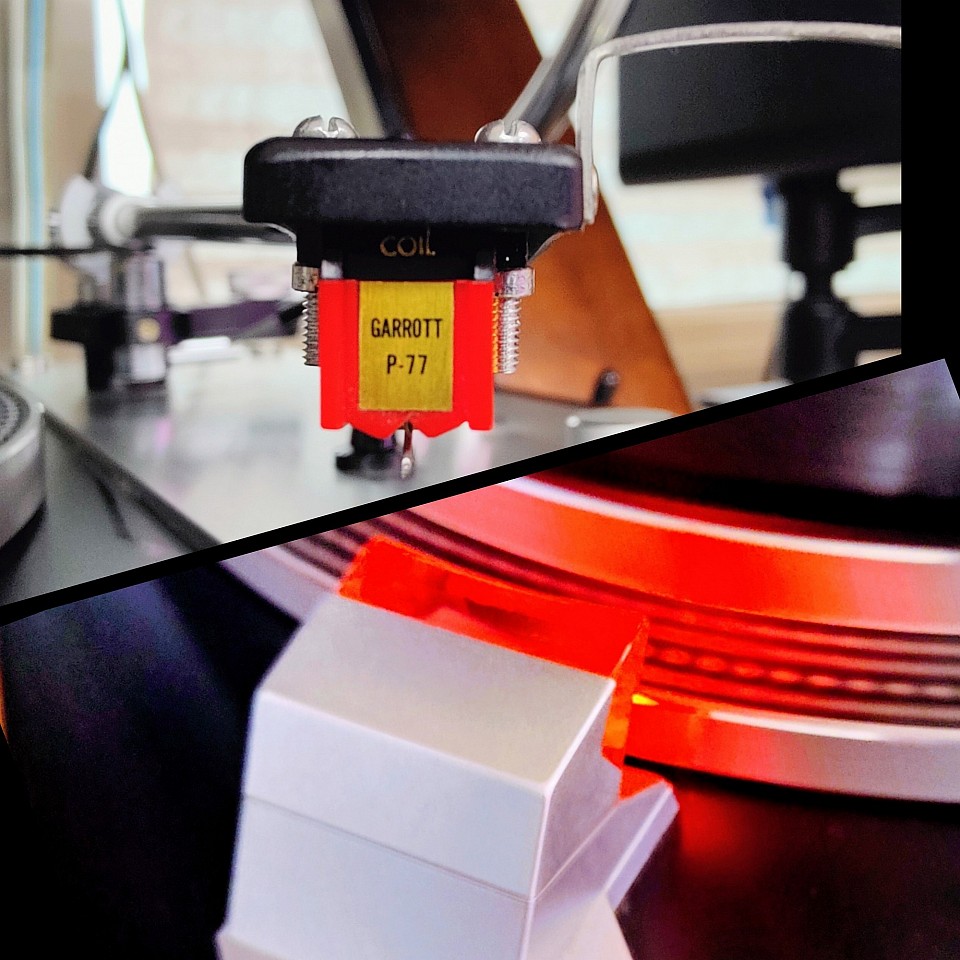

****BONUS Garrott P-77 cartridge****
This very well-built turntable is complete with the original Jelco S-shaped 8.5" static balanced tonearm and anti-skate. The original headshell is fitted with an extremely high quality (NOS) *Garrott P-77 moving magnet cartridge & new stylus
*NOTE: The Garrott Brothers P77 technology:
The Garrott creates an electrical signal using a small magnet fixed to the end of a cantilever. As the magnet moves within a pair of coils fixed inside the cartridge body, an electrical current is created. The P77 has two models above it in the range. The output voltage is 4mv, compliance is medium, weight is 5.8 grams and the frequency response is 20-20'000Hz +/-2dB. On the end of the P77's twin aluminium cantilever sits an exquisite Garrott Microscanner diamond. Garrott recommended a tracking weight of 1.7 to 1.9 grams and I applied 1.8 grams with 50kΩ loading. The Garrott's styling can be described as retro. But looks can be deceptive because underneath the microscope, the P77 displays a level of craftsmanship and quality control that easily equals the Ortofon Cadenza Bronze.
On the turntable, the speed adjustments and controls are all built into a large and elegant brushed aluminum plate on the tonearm section. The opposite side features another smaller brushed aluminum housing containing a backlit strobe. The 3.3 lb platter is a 13.3" diameter aluminum alloy injection molded platter with strobo marks.
Basic specs:
Power consumption 17 watts
Dimensions: 19.1W x 6.4"J x 15.9"D
Weight: 23 lbs
About Miida...
Miida was formed as a subsidiary of the ancient Japanese company Marubeni-Iida. Miida was primarily a Japanese import-export company that specialized in exporting mid-fi electronics (and other goods) mostly to Europe, the Philippines and the Americas. Their American headquarters was located in Lyndhurst NJ.
Marubeni of Japan was founded in 1858 by Chubei Itoh.
Denon = Nippon Columbia Co.,Ltd;
The DENON brand was formed in 1947 and originated from the merger of Japan Denki Onkyo (commonly known as "Den-on"), one of the affiliates. Den-on was a group of engineers in business-purpose audio equipment, dating back to Japan Electric Recorders Mfg., which was established in 1939. The company was developing and manufacturing turntables and cartridge tape-recorders for NHK and other broadcast stations.
++++++++++++++++++++++++++++++++
++++++++++++++++++++++++++++++++

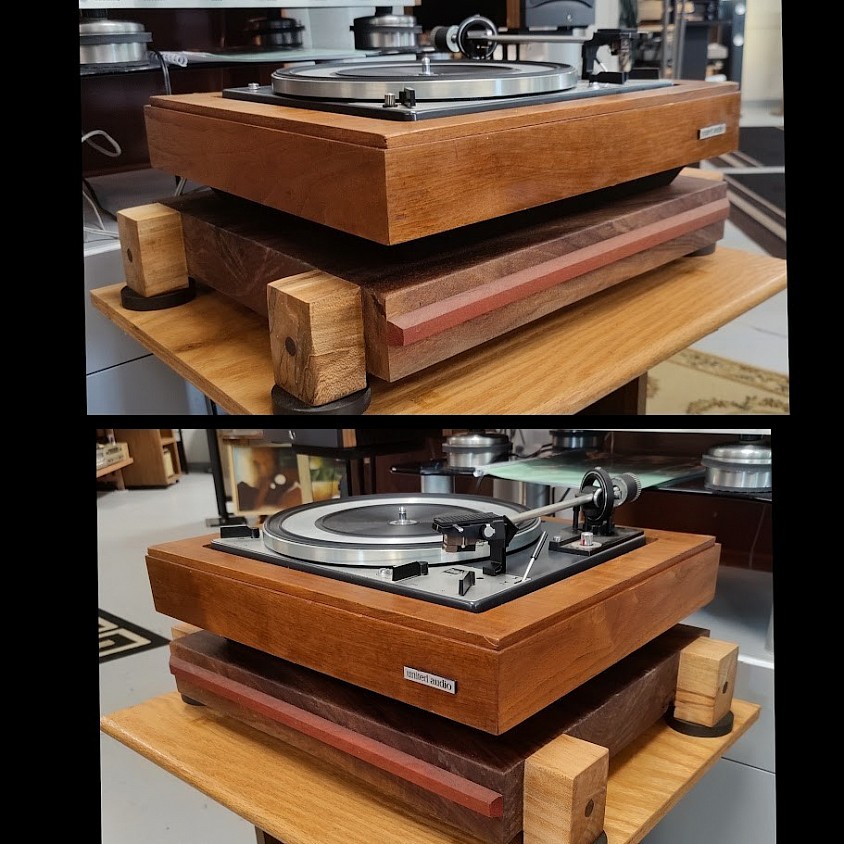

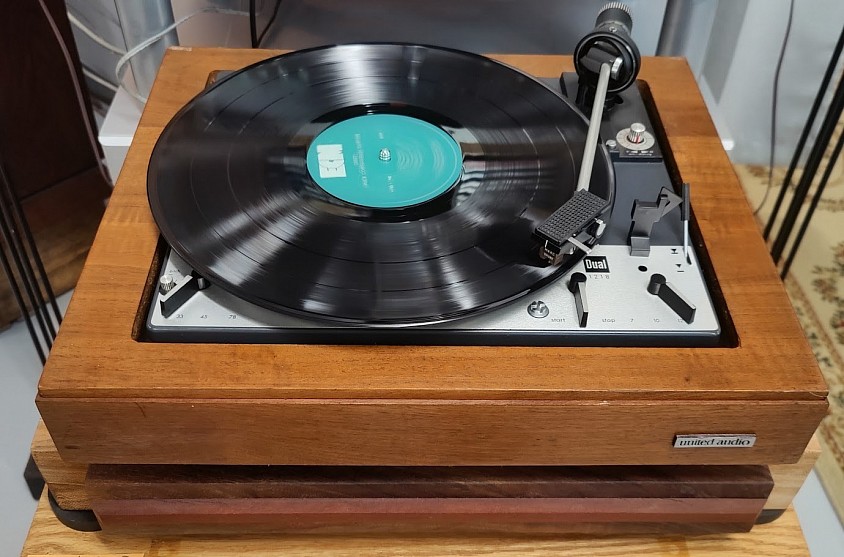

Dual 1218
('71-'72) SOLD
Obtained locally from the original owner, this REALLY nice Dual 1218 is a 3-speed, fully automatic, rim-drive turntable. It was extensively serviced/restored here in our shop in Sept 2026.
Essentially, this turntable was designed and built in Germany during the early 70's. At the time of release, the Dual 1218 (and most of the rest of the 12XX Series) was globally hailed as testament to the "superiority" of German engineering. They received massive attention among the audiophile community. Today, some 50+ years later, those who still appreciate the design and have one that's been carefully restored, still enjoy the robust sound they are capable of producing.
Thanks to the owner's careful and proper use over the years, the cosmetics were easily restored to pristine condition; that includes the original tinted dust cover which has been hand polished.

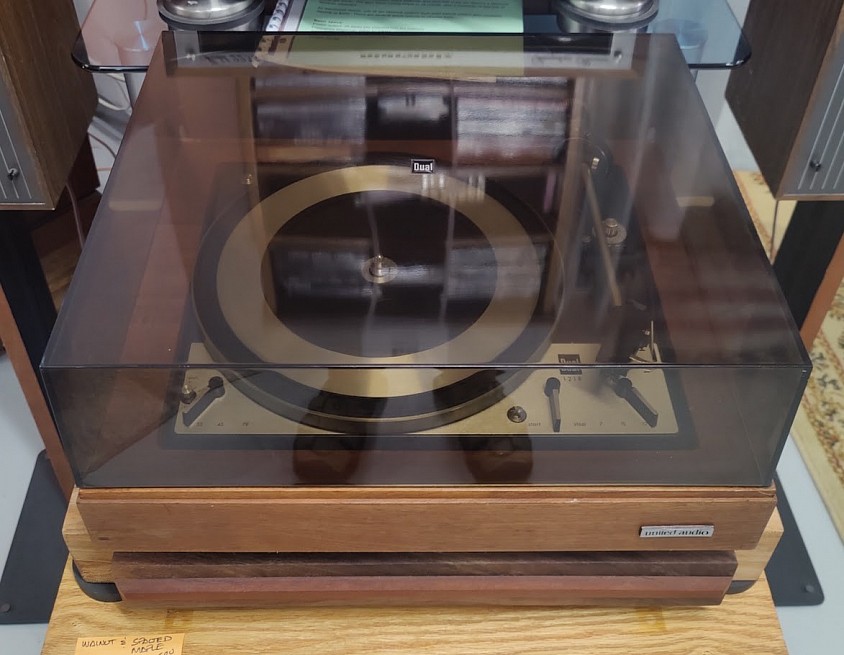

As a major bonus, this turntable comes nestled inside a pristine genuine walnut "United Audio" base. A lot of the Duals came with a lightweight base while some of the later ones were actually made of plastic (ugh). The base has been lightly sanded and refinished.
Services performed:
Regardless of the exterior condition, the interior mechanism servicing of the 1218 can sometimes be a real challenge. Obviously, as with any vintage equipment over 50+ years old, the bench service is critical. Unlike many older turntables, the 1218 has a plethora of moving parts, gears, wires, etc. Everything that had any kind of movement was checked, double-checked, lubed and tested. Fortunately, the most critical part (called the *steuerpimpel) was solid, intact and functioning correctly.
Some things to know about this Dual 1218:
~Built very well and feature excellent bearings and robust parts.
~Very good gimbal mounted tonearms. They feature rigid, all-metal construction mounted in a 4 point gimbal suspension. The counterbalance has 0.01 gram click stops. Although some designs can be finicky about setup, the Dual tonearm suspension method is also very forgiving. The tonearm has what's called a "sled" which is a removable slide-out holder that accepts ALL 1/2" mount cartridges.

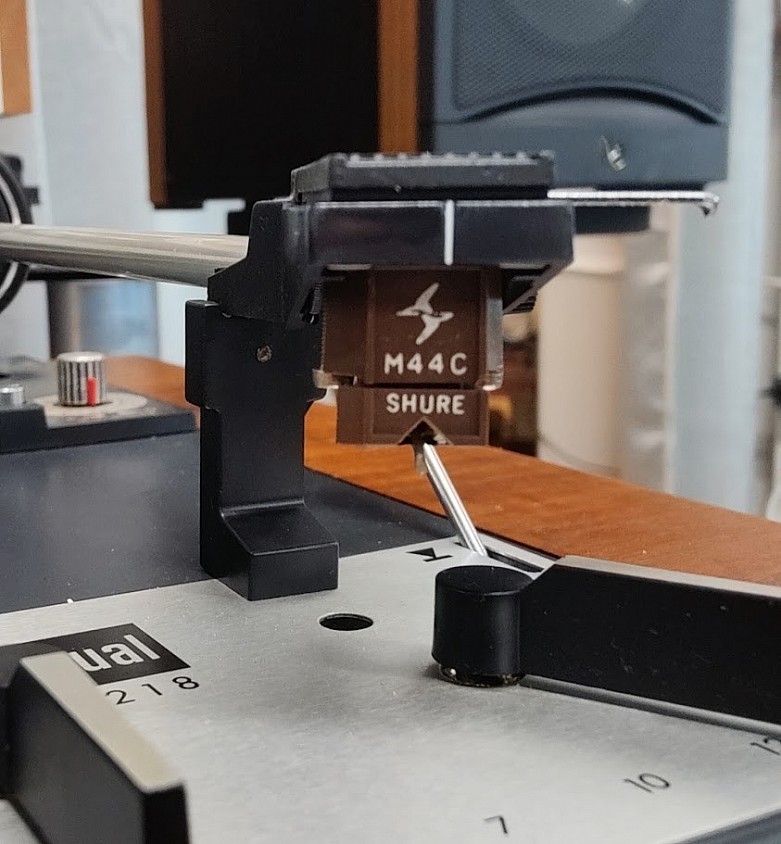

Bonus: the tonearm comes with an excellent Shure M44C cartridge and NOS Shure N44C stylus (brand new stylus, less than 1 hour of use for demo purposes)
~When properly serviced like this Dual 1218, you will experience some very good implementations of idler wheel technology of the era. The massive and heavy 4 lb platter and excellent 4 Pole Synchronous motor made for a very quiet version of that same idler wheel technology.
*NOTE: Probably the biggest issue with these turntables would be the dreaded steuerpimpel. It's a glider that allows the tonearm to move. Think of it as a tiny "control nipple" made of plastic or rubber located at the bottom of the tonearm assembly in many Duals. It can wear out or degrade over time, causing the automatic functions to stop working, so it is an essential piece of the puzzle.
Specs:
3 Speed (33.33, 45 & 78 RPM)
Cueing Pitch Control - 6 % Adjustment @ All Speeds
Wow & Flutter: +/- 0.09%
Cartridge weight: Accepts cartridges with a weight of 1-12 grams.
Weight: 22 lbs
Dimensions: 12.9"W x 8.5"H x 10.8"D
About Dual...
The Dual company was established on February 1st 1907 in Black Forest (Germany) by two brothers, Christian and Joseph Steidinger, as a fine mechanics factory specialising in manufacturing of clockwork and gramophone parts. In 1927, Gebrüder Steidinger changed its name to Dual in reference to the dual-mode power supplies which allowed gramophones to be powered from the mains or with a wind-up mechanism. Soon after, the company began producing turntables of its own. After the Second World War, it became the biggest manufacturer of turntables in Europe. However, Dual, managed by the Germans, did not withstand the Japanese competition and after the bankruptcy in 1982 it was sold to Thomson. In 1988 it was bought by Schneider Rundfunkwerke AG, a German company. Between 1970 and 1990 it also produced other audio and video equipment such as: cassette players, VCRs, CD players etc.
In 1993-34, Dual was split into:
– Dual Phono Gmbh acquired by a company called Alfred Fehrenbacher, which has continued to manufacture turntables in the Black Forest on the same traditional product line. They can be recognised by the CS code.
– Dual DGC Gmbh selling mostly rebranded consumer electronics made in the Far East (including the turntables with the DT code).
For the American market (after the insolvency of Schneider Rundfunkwerke AG in 2001) the right to use Dual brand was bought by a Chinese company called TCL Holdings, which passed it on to a Korean company called Namsung Electronics in 2002. Currently Dual Electronics Corporation manufactures audio, video and GPS equipment to be installed in cars, boats and at home.
+++++++++++++++++++++++
+++++++++++++++++++++++

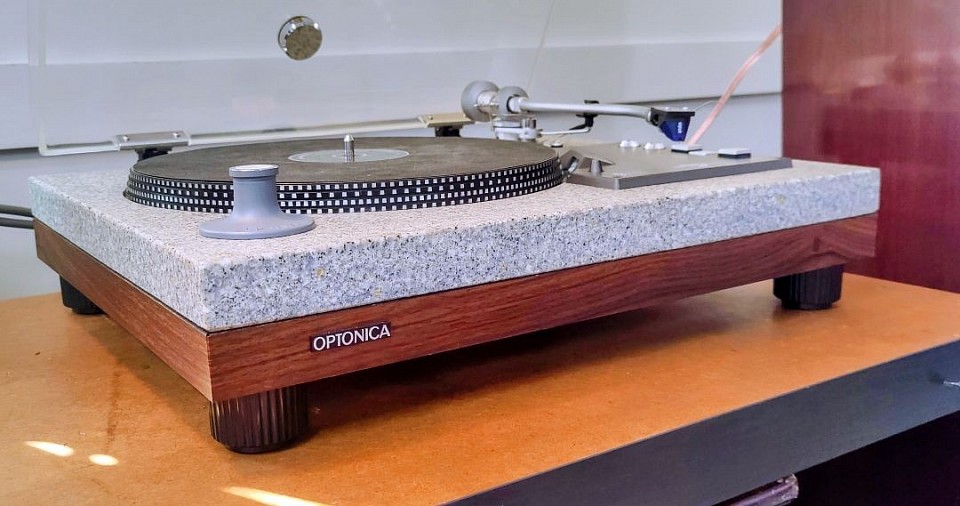

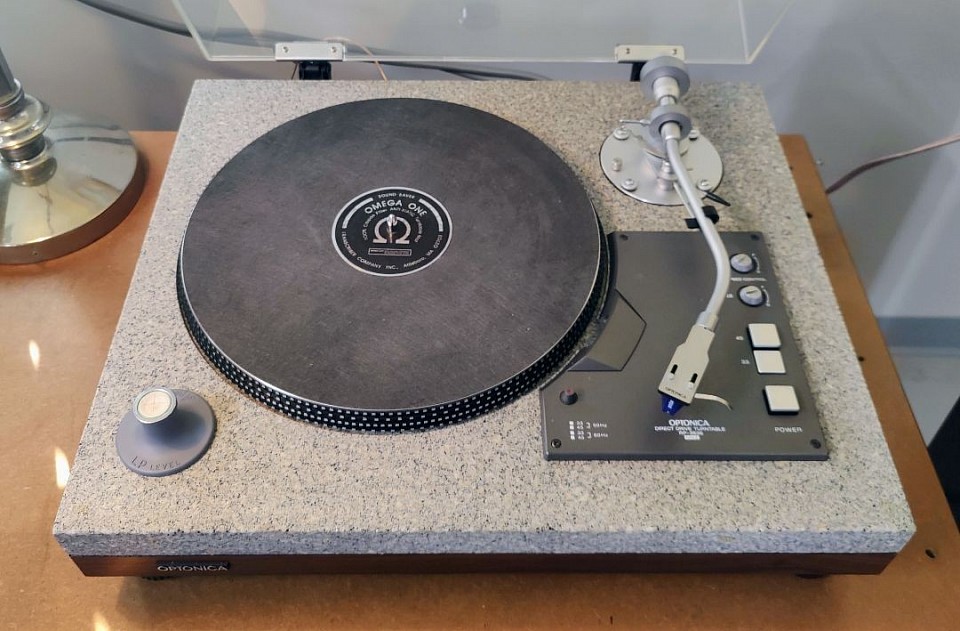

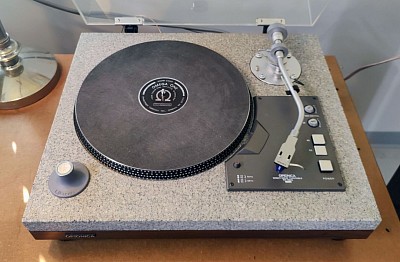

Optonica RP-3636MKii
(1976) $1100
Literally in perfect cosmetic and operating condition, this very rare Optonica RP-3636MKii turntable is one of the most unique designs to come from Japan in the mid 70's.

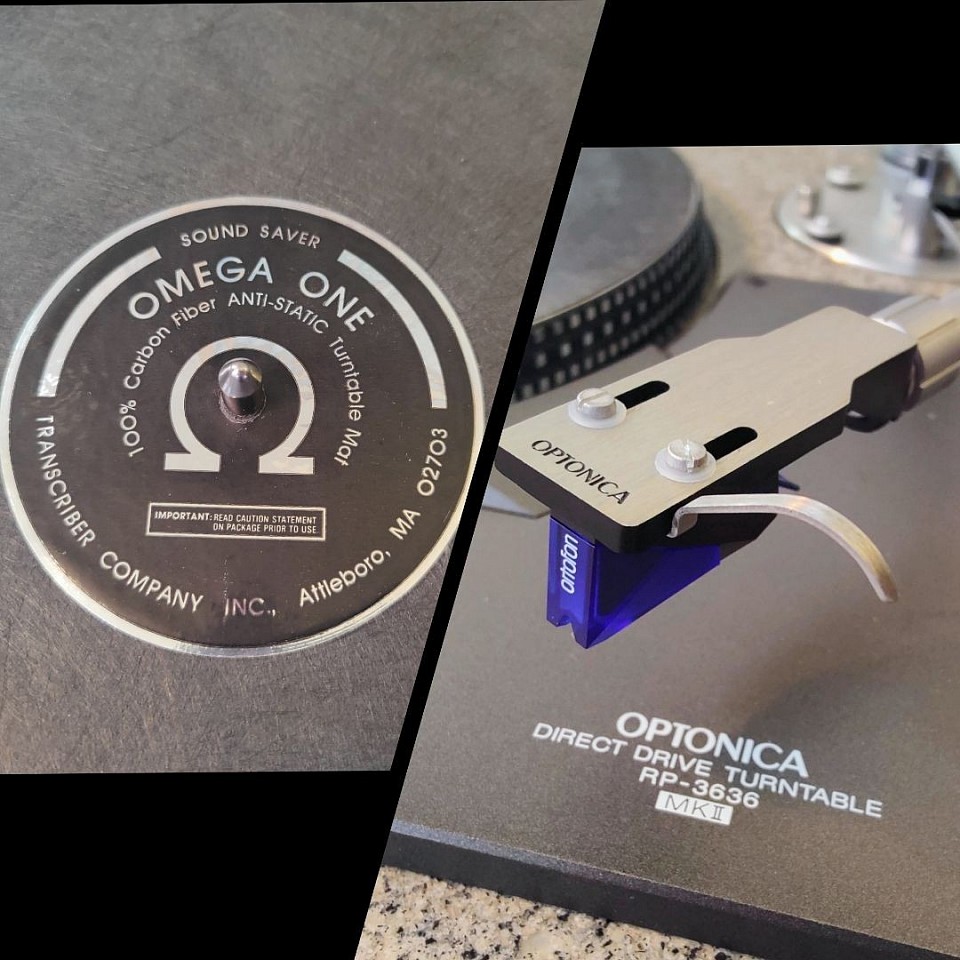

The original Optonica branded headshell comes with a brand new Ortofon Blue cartridge & stylus.
Also included is an extremely rare Omega One platter mat made of very thin 100% carbon fiber.
The RP-3636MKii was, without a doubt, the most notable Optonica product designed during their initial offerings of high end stereo gear was this magnificent direct-drive, manually operated turntable. It should be noted that while most prefer a turntable with some automatic functions, most of the time a manually operated turntable is generally considered the *best by most audio repair techs.
Today, this incredibly hard to find turntable is sought after by collectors and audiophiles for obvious reasons.
Its unique construction is called "Mikage Granite Stone" which was developed by Optonica for use in turntable design. It is a compound of both granite and resin that virtually eliminates feedback thus preventing resonance (rumble) to reach the tonearm. Therefore, it's literally as "solid as a rock" because it's built on 15.8 pounds of that Mikage granite stone. Which means that vibrations from the speakers are absorbed, reducing acoustic feedback and maintaining maximum signal to noise ratio. A similar compound was later used by Kenwood for their KD-5xxx series of turntables, some of which are affectionately referred to as "The Rock".
The Optonica engineers were so concerned about resonance, they even added a unique round chrome weight attached to the rear top of the proprietary dust cover. This weight keeps the dust cover solidly flat (vibration free) on the granite base during play. The turntable itself is very heavy weighing in at 35.4 pounds.
The longer-than-normal tonearm is a copy of an excellent Shure Brothers arm. It is a very simple, very precise and highly sensitive S-shaped tonearm. Which means that the stylus will pick up subtle sound signals as accurately as the cutter stylus that recorded them. The arm design also includes an oil-damped cueing control that gently lifts and lowers the tonearm. This composite metal tonearm was made strictly for the 3636 MKii. Notably, the direct-drive motor is the finest that they could create at that time.
Because there are output jacks on the back, you can pick and choose your own audio cables...another major plus on this very fine audiophile grade turntable.
Specs:
Motor: 6-pole AC Servo motor with 72-pole FG servo mechanism
Drive system: direct drive
Speeds: 33 and 45rpm
Speed control range: within +-4%
Wow and flutter: less than 0.05% WRMS
Rumble: better than 68dB
Platter: 12" aluminium die-cast with strobe marks
Cartridge weight range: 4 to 18g
Dimensions: 19.75"W x 7.5"H x 16.25"D"
Weight: 35.5 lbs
*NOTE:
Why is a manual the "best" ?
All the design technology applied to the better manual turntables goes into the construction of the base, motor and tonearm. There are no additional mechanics to interfere and operate the movement of the arm or the auto start/stop functions. Pure and simple...that's what a manual unit does best.
About OPTONICA (Sharp Electronics of Japan)...
The Optonica brand was created and first launched by Sharp in 1976 as a separate high-end brand to compete directly with Pioneer, Technics (Panasonic), Fisher, Marantz, Nakamichi, Sansui, Kenwood and Sony. Although Sharp paid the bills for the setup and creation of Optonica, it was always meant to be a separate entity away from Sharp. They hired the best audio engineers and gave them a blank check. Unfortunately, by the time Optonica finally hit the streets with an array of excellent audio gear, the 70's were coming to a close and the already crowded marketplace made it an uphill climb for Optonica.
Sharp Electronics Corporation of Japan was founded in 1912 and takes its name from one of its founder’s first inventions, the "Ever-Sharp" mechanical pencil. Obviously, they also designed and sold much more over the years. By the mid-70's their electronic equipment (mostly gadget oriented items sold in catalogs and department stores) was well situated in the USA. Major decisions were made to move into the select high-end stereo component market. They absolutely hit a home run with their Optonica lineup. Unique, powerful and definitely well built, they are now much more recognized and commanding prices approaching those of the other well known Japanese HiFi companies.
++++++++++++++++++++++++++
++++++++++++++++++++++++++

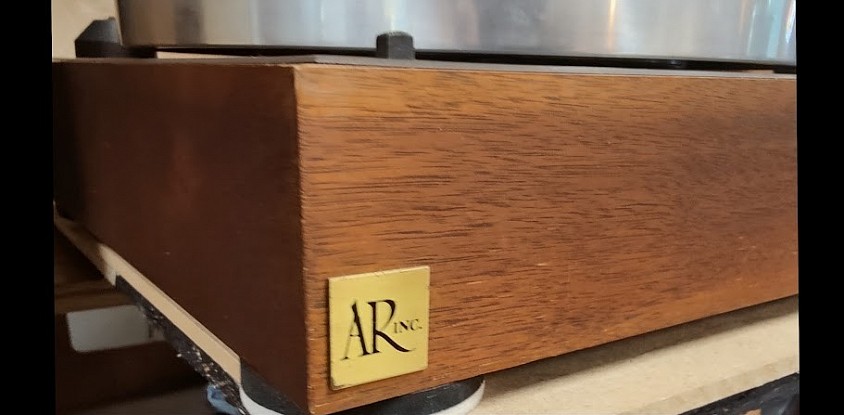

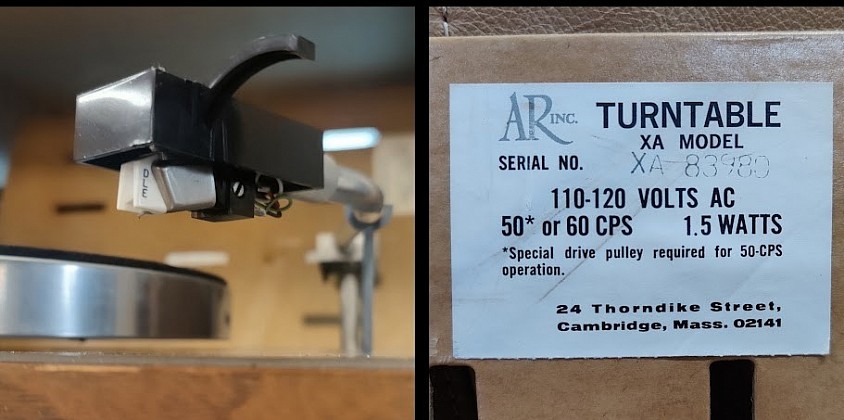

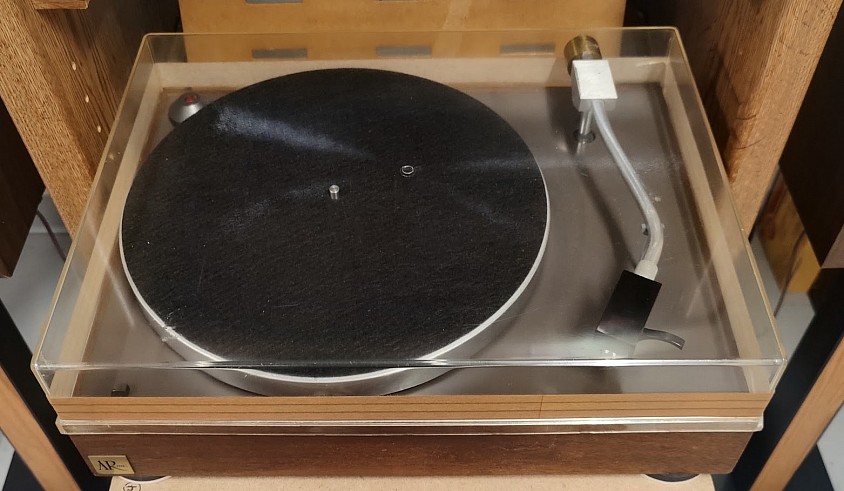

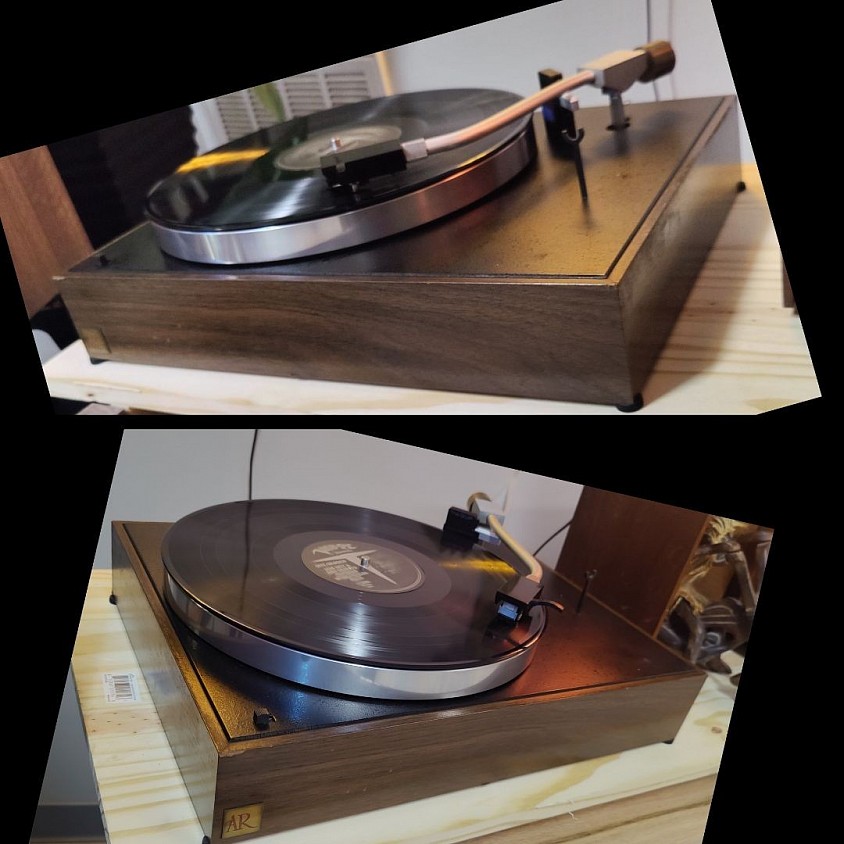

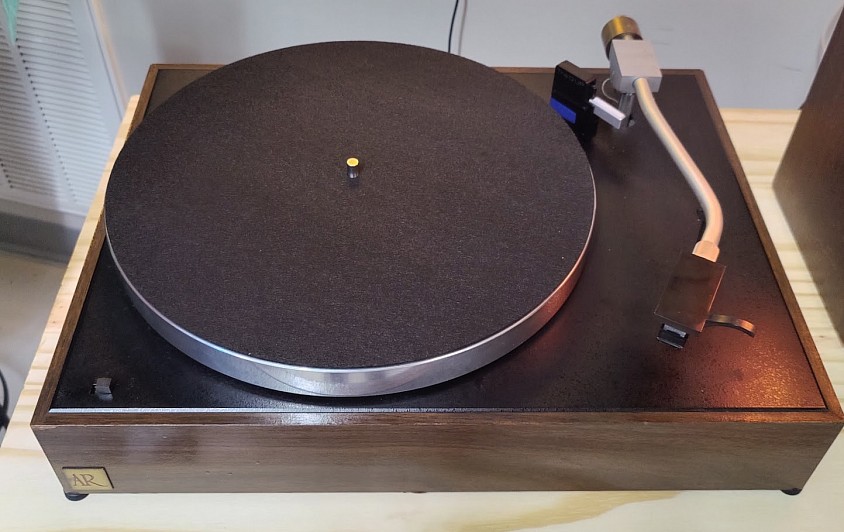

Acoustic Research AR-XA
('61-'67) NFS
Obtained from the original owner, this Acoustic Research XA turntable is a classic piece of vintage history. It's in excellent condition. These tables were (still are) known to be extremely quiet and immune to rumble.
This is a fully manually operated turntable; you must gently place the tone arm on the record to start listening and lift it at the end. There is an aftermarket cueing device installed, it's called the "Q-Up". At the end of play, the arm is gently lifted up off the record; there's no worry about stylus damage.

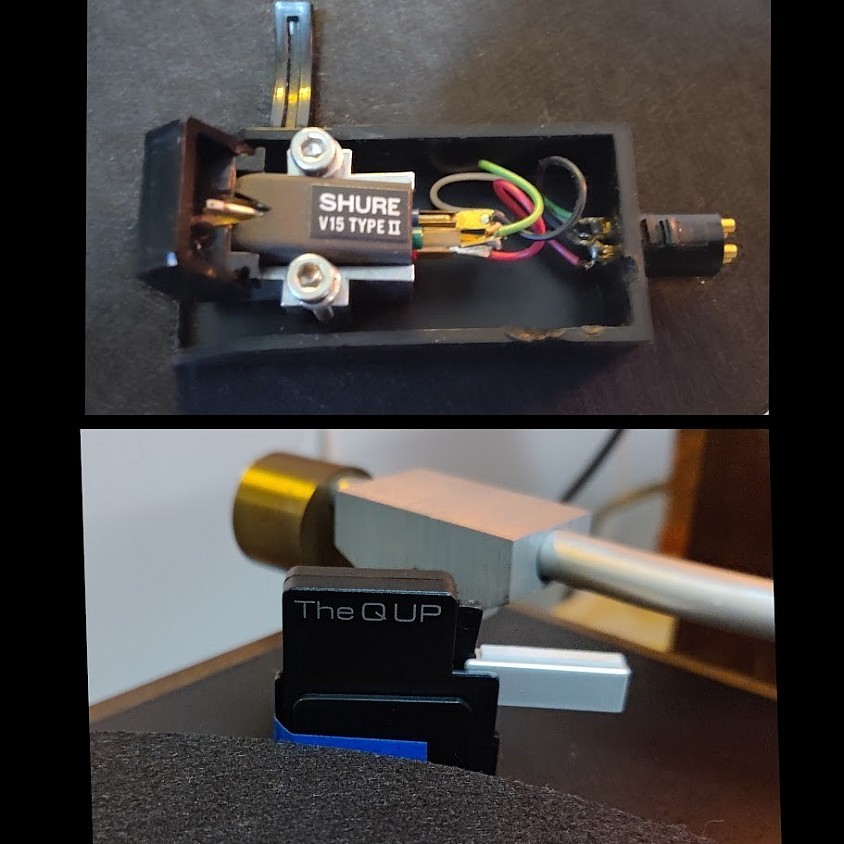

The original and proprietary headshell is fitted with an excellent Shure V15 Type II cartridge and brand new (correct) JICO VN15e stylus with built-in stylus guard...all properly aligned.
It was completely disassembled and all moving parts were cleaned and lubed. It also has a new belt and the speed is dead-on accurate.
The real walnut panels were lightly sanded and oiled; the deck retains its original smooth, vibration-damping finish. The original dustcover is also in excellent condition.
Specs:
Belt Drive
Suspended aluminum platter-2 parts-in oil bearing – 3.9 lbs
12″ S-Shaped tonearm in oil bearing
AC synchronous motor 110-120 v 60 cycles
Black headshell with brass inserts for cartridge screws
Tonearm rest
Base finish: solid oiled walnut
Metal plinth finish: smooth satin gunmetal grey
Overall size: 12.75"D x 16.75"W x 5.25'H (with dustcover in place.)
Total weight 13.5 lbs

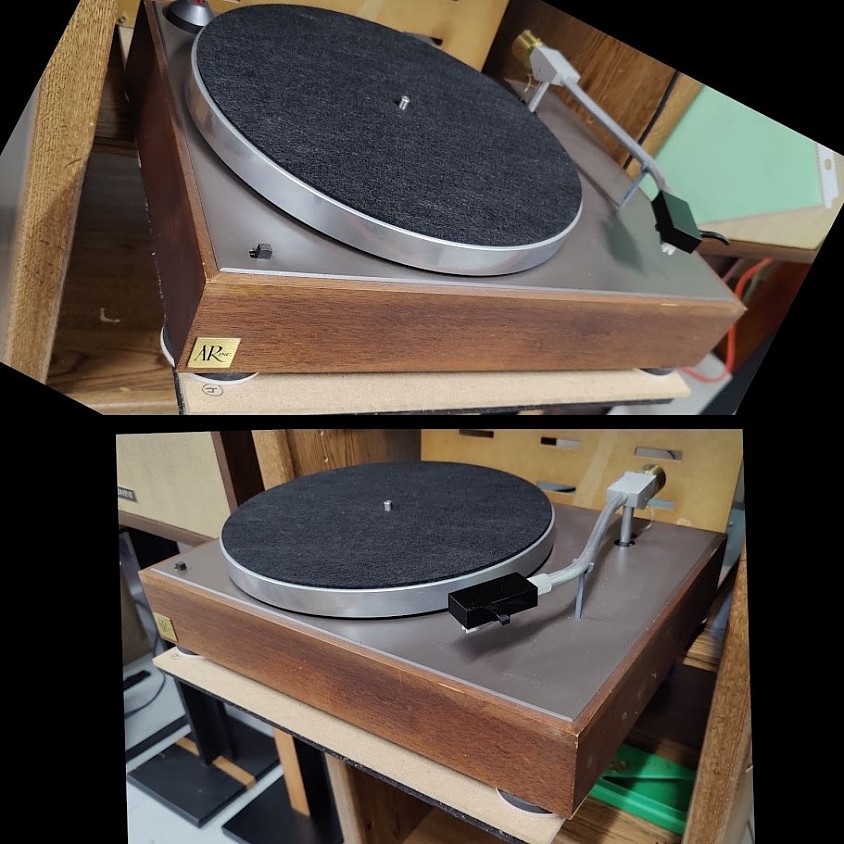

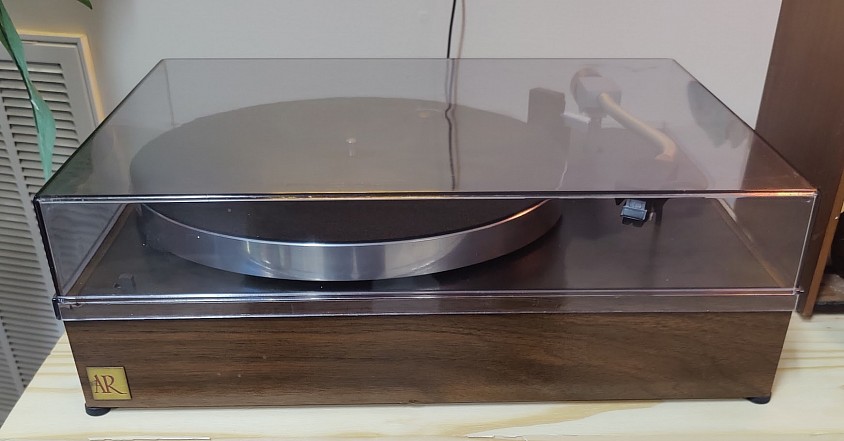

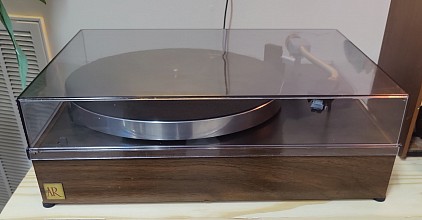

Acoustic Research AR-XA
('61-'67) SOLD
A classic piece of vintage history, this fully operational, this Acoustic Research XA turntable is in very good condition. These tables were (still are) known to be extremely quiet and immune to rumble.
This is a fully manually operated turntable; you must gently place the tone arm on the record to start listening and lift it at the end. There is no cueing device.
It was completely disassembled and all moving parts were cleaned and lubed. It also has a new belt and the speed is dead-on accurate.
The real walnut panels were lightly sanded and oiled; the deck retains its original smooth, vibration-damping finish. The original dustcover is in "acceptable" condition; minor cracks on the corners were patched and camouflaged with clear bonding tape and Washi simulated wood tape for cosmetic appeal.
The original and proprietary headshell is fitted with a very nice, classic Pickering TL-P cartridge and new DLE stylus...properly aligned.Included is a copy of the original owner's manual, brochure and related paperwork.
Specs:
Belt Drive
Suspended aluminum platter-2 parts-in oil bearing – 3.9 lbs
12″ S-Shaped tonearm in oil bearing
AC synchronous motor 110-120 v 60 cycles
Black headshell with brass inserts for cartridge screws
Tonearm rest
Base finish: solid oiled walnut
Metal plinth finish: smooth satin gunmetal grey
Overall size: 12.75"D x 16.75"W x 5.25'H (with dustcover in place.)
Total weight 13.5 lbs
About AR turntables...
The first turntables were shipped to dealers in 1961. They were a completely assembled package except for the pickup cartridge: the drive/platter system mounted on a finished wooden base, tonearm, power and amplifier cables, turntable mat, overhang plate, stylus force gauge transparent dust cover. The initial price was $58, on which the company lost money. It was subsequently raised in steps, in 1972 it was still only $90.
The turntable quickly gained profitability, and AR sold hundreds of thousands of them. Although it was the least expensive quality turntable on the market, many reviewers and consumer organizations rated it the best-with one exception. Stereophile thought it was good, but said that the spindle was too big. In fact that was an incorrect call; the spindle diameter was precisely what industry standard specified.
BACK STORY LINK: (copy & paste in your browser)
https://www.psaudio.com/blogs/copper/a-classic-turntables-forgotten-roots-the-ar-xa-1?srsltid=AfmBOopkrhhGAYJfDFbyoCPmRwVfZ72_kztrP4ftZqWNOM3B-A3Tgm2R
++++++++++++++++++++++++++++++
++++++++++++++++++++++++++++++

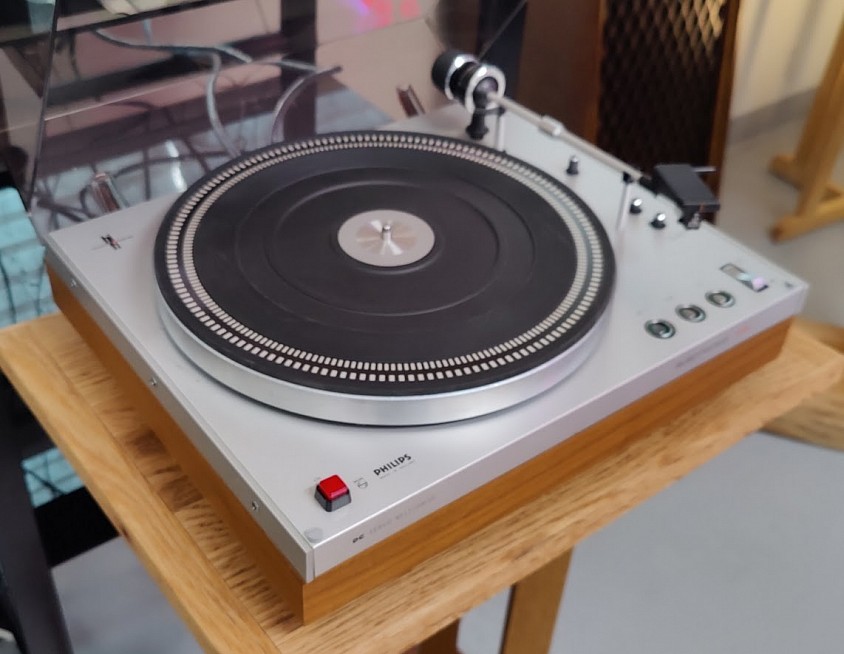

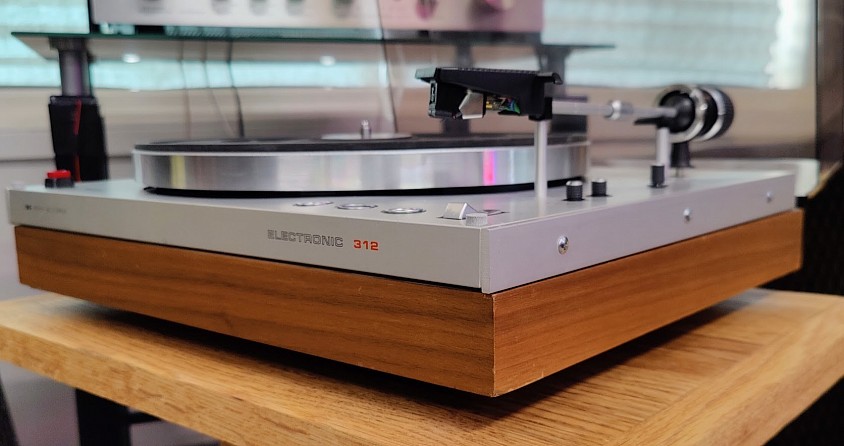

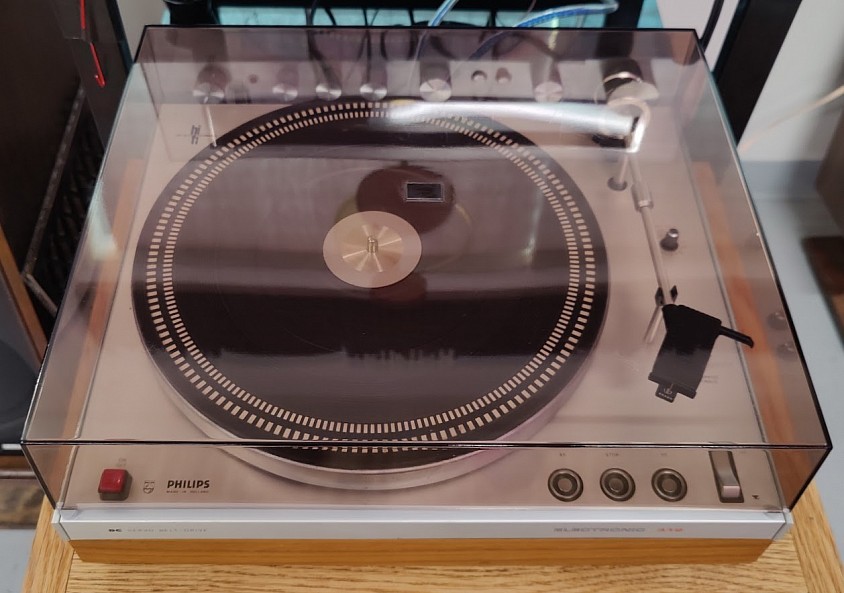

Philips GA-312
(Holland, 1978) $500 (highly customized)
After an extensive restoration and several upgrades, this beautiful Philips GA-312 is in perfect cosmetic and operating condition. Described as a "mid-century-modern design", the Philips GA-312 was made in Holland during the late 70's.

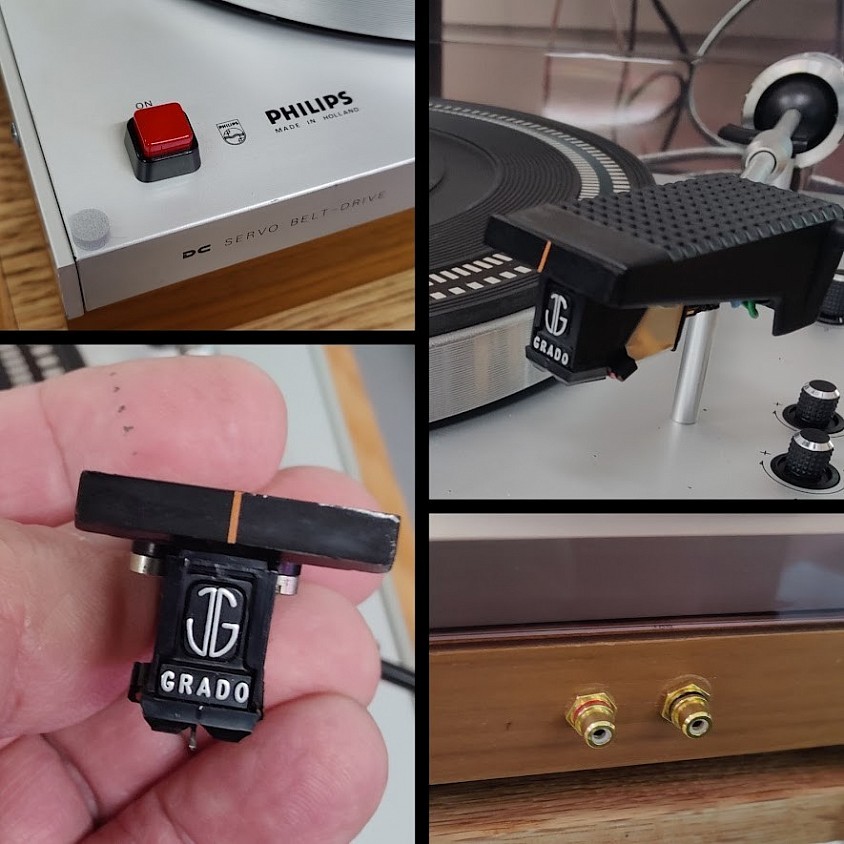

Services & upgrades:
~New Gold plated RCA connections (choose your own quality cables)
~New Grado Black cartridge & stylus
~New upgraded power button assembly
~All new LED lamps for speed selection
~Brand new belt
As a semi-automatic unit, Philips designed this turntable to operate by simply pushing the cueing button down allowing the arm to do a slow descent onto the record, then at the end of play, the arm lifts up off the record and the motor shuts off.
The 312 is a sprung chassis, belt-driven turntable with electronic speed control. Stylus force on the GA312 is set by means of the slide weight on the pick-up arm after this is balanced with the counterweight. The "photo-sensitive" light touch function buttons have brand new green LEDs to indicate the platter is on or off plus the selection of either 33 or 45 RPM. In addition, there are topside pitch controls for adjusting actual platter speed if necessary.
The unique proprietary tubular tonearm has a convenient slide-out "carriage" that contains the Grado cartridge and stylus.
The player is equipped with an adjustable anti-skate which applies a pre-set force to the arm. The motor speed is continuously controlled and kept constant by solid state circuits in combination with a tacho-generator which is directly coupled to the motor shaft. The platter and the pick-up arm are mounted on a sub-chassis, which is damped, spring suspended from the rigidly mounted main chassis, absorbing mechanical shocks and external vibrations.
The light bronze tinted original dust cover has been hand polished and has adjustable hinges. There is a very fine, wrap-around walnut veneer on the lower base that adds a touch of class to this beautiful turntable.
About Philips High Fidelity International...
Philips goes way back to the early 1900's and has always been a respected name in Europe and the Netherlands. Their early development of loudspeaker technology pushed them into the high end section of audio. A little known fact: They also invented and developed the cassette tape among other things. Before they became well known in America, they were a leading maker of turntables, speakers and higher end electronics all over the rest of the world. When they moved into the North American market, they dropped the "High Fidelity International" and became "Philips" and/or "Philips Laboratories".
+++++++++++++++++++++++++++
+++++++++++++++++++++++++++

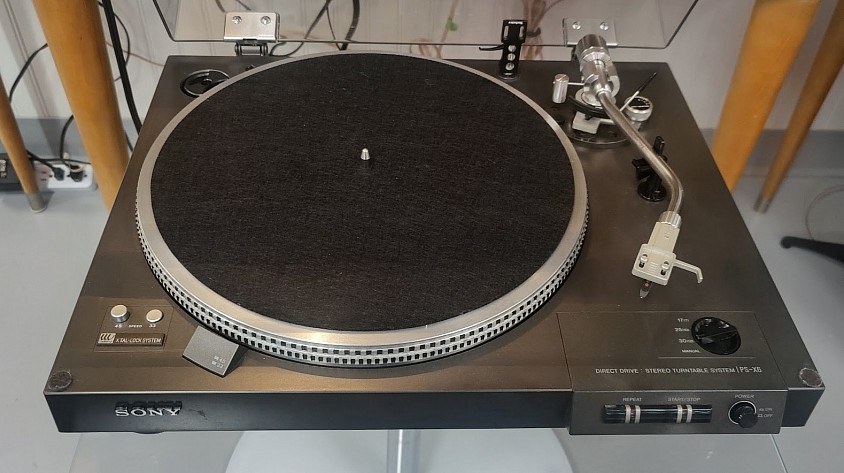

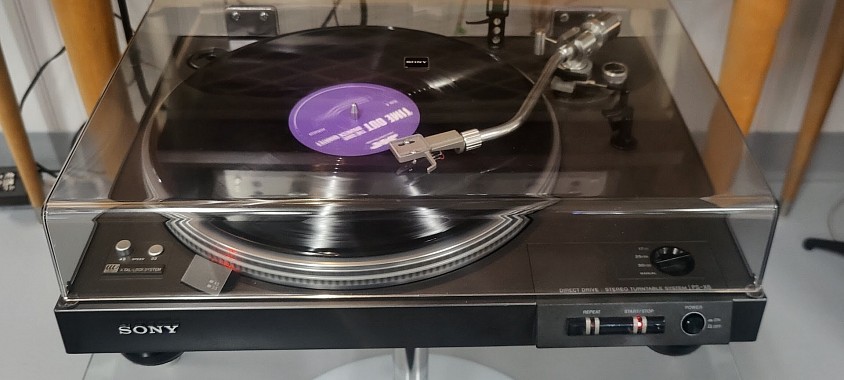

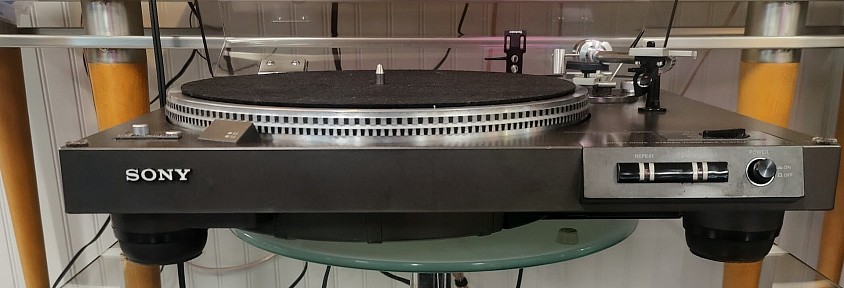

Sony PS-X6
('77-'78) $500
Obtained from the original owner, this Sony PS-X6 is a fully automatic, direct-drive turntable in absolutely excellent cosmetic condition and fully operational.
It has been completely and thoroughly serviced; that included all the internal controls checked, cleaned and lubricated. This was one of Sony's best mid-fi designs in the late 70's. The original dust cover has been hand polished and appears as new.
The S-shaped tone arm comes with a Shure M44e cartridge and new stylus. Also included is the original (and unique) factory headshell for use with a different cartridge if so desired..
Second only to the TOTL *PS-X7, the PS-X6 is a stunner which sold extremely well worldwide back then and still astonishes those who can't believe the sonics of this cool-looking piece of enduring Japanese engineering.
At first glance, you might think the PS-X6 looks like a lightweight turntable. However, after you pick it up and feel that 25 lbs of solid engineering, that thought goes out the window.
*NOTE: The PS-x6 and PS-X7 are essentially the same except the PS-X7 came with a carbon fiber tonearm.
The dark gray satin plinth is made of Sony's Bulk Molding Compound (BMC). Long a fixture in Sony's anti-resonant design, BMC is carefully formulated for high strength and high internal loss. Like steel, it has the rigidity required for its structural purpose. But unlike steel, BMC steadfastly resists vibration and resonance. BMC consists of calcium carbonate (a principal component of marble), glass fiber reinforcement and unsaturated polyester. To securely and safely keep that heavy plinth rock-steady there are Sony's patented anti-resonant, gel-filled, fully adjustable feet.
Some of the PS-X6 features:

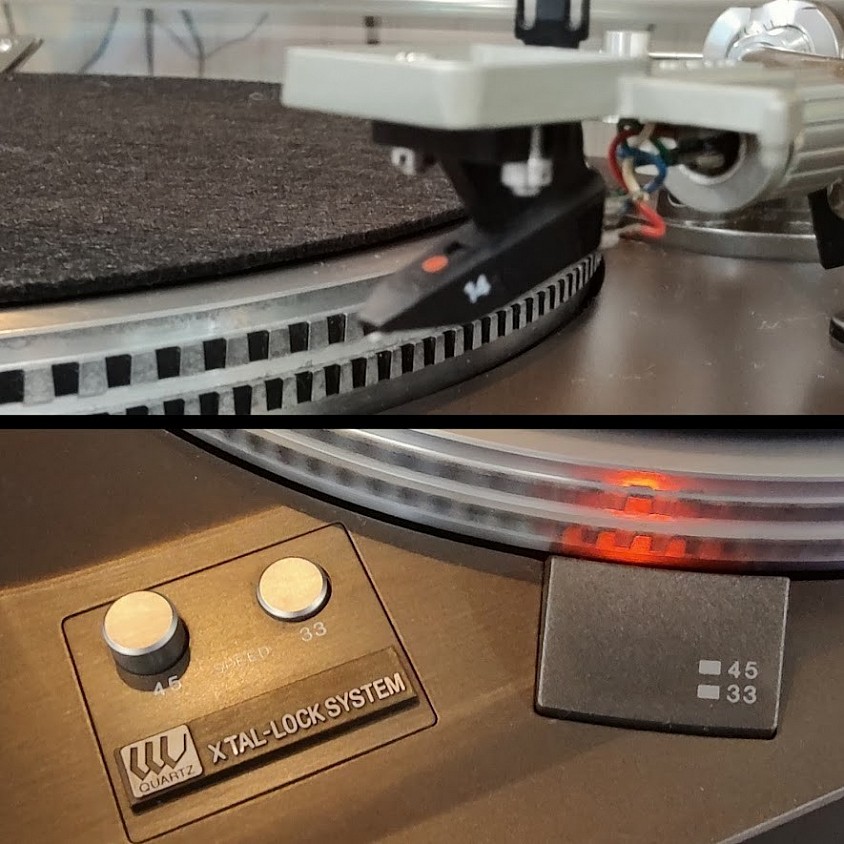

~Sony's tried-and-true speed locking technique which is a barium-ferrite magnetic imprint
~8-pole reading head
~X'Tal locking by phase loop
~Very reliable brushless / slotless motor.
~Dynamically balanced diecast aluminium platter,
~Optical end-of-disc detection and mechanism,
~Non-resonant SBMC enclosure (Sony Bulk Mold Compound)
~Original factory height-adjustable gel-filled feet.
The controls are at a minimum and very easy to operate.
First, there's the "power on/off" push button.
Right above the power button is the dial switch which lets you choose the record size (7" / 10" / 12") or, if you wish, you can select "manual" which lets you move the arm onto the record wherever you want it instead of the auto setdown. Even in manual mode, the arm will still return at the end of play and the unit shuts off.
NOTE: We always prefer the "manual mode" for two simple reasons: it saves the auto-start mechanism from wear and it just feels good to DIY.
A slight touch to the capacitive "start/stop" control (on the front edge) starts the motor and activates the arm onto the record; it gently sets down at the exact starting groove of the record. At the end of play the arm returns and the unit shuts off. If you need to interrupt the playing for some reason, just touch that same "start/stop" control one more time, the arm lifts up, returns to rest and the unit shuts off.
The "repeat" control (next to the "start/stop") allows for continuous repeat of the record if so desired.
On the left are the simple 33/45 RPM speed buttons.
Basic specs:
Motor: DC servo controlled
Drive system: direct drive with crystal lock system
Wow and flutter: 0.025% WRMS
Dimensions: 17.5"W x 6.5"H x 14.8"D
Weight: 25 lbs
Sony turntable history...
Sony’s turntable history spans from pioneering high-fidelity direct-drive systems in the '70s to modern Bluetooth-enabled models in the '20s. Renowned for innovation, Sony introduced landmark models like the quartz-locked PS-8750 (1975) and the iconic vertical PS-F9 "Flamingo" (1983). Following a hiatus, Sony returned to vinyl, releasing new, highly-regarded consumer turntables in 2019 and 2026.
Direct-Drive Focus:
In the '70s, Sony developed advanced direct-drive systems, often using their Brushless-Slotless (BSL) motor to reduce "cogging" or noise.
(1975) the PS-8750:
Known as a, if not the, first fully integrated quartz-lock direct-drive turntable, providing superior speed precision.
(1983) the PS-F9:
A vertical "linear tracking" turntable that could sit on a desk or hang on a wall, powered by batteries, reflecting Sony's focus on portability and futuristic design.
Technical Advancements:
Sony utilized materials like carbon fiber for tonearms and introduced "Magnedisc" servo control to monitor and adjust speed with high precision.
(Today)
With the rise of CDs in the late '80s and '90s, Sony halted most turntable production. As vinyl experienced a resurgence, Sony returned to the market with consumer-focused, user-friendly options, aiming to bridge digital convenience with analog sound.
++++++++++++++++++++++++++++
++++++++++++++++++++++++++++

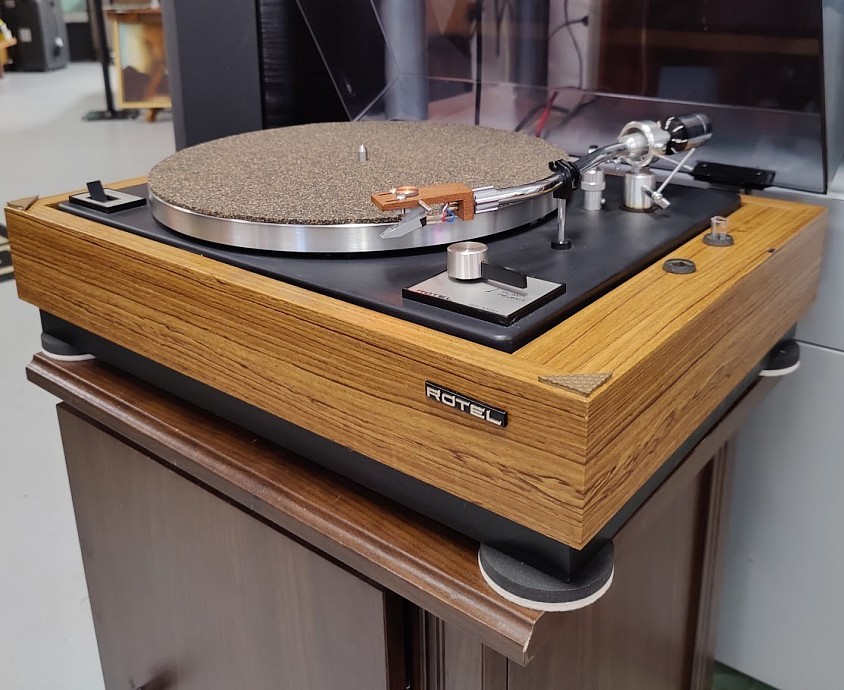

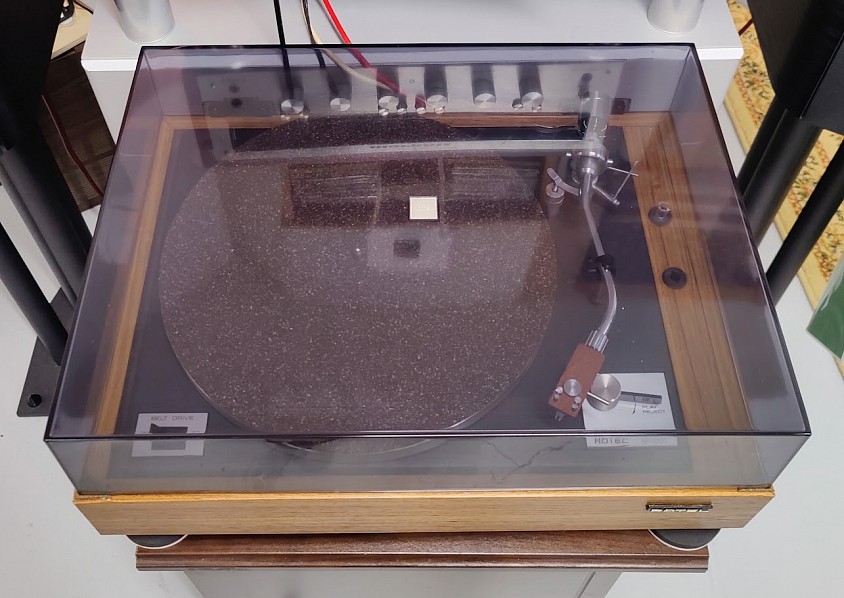

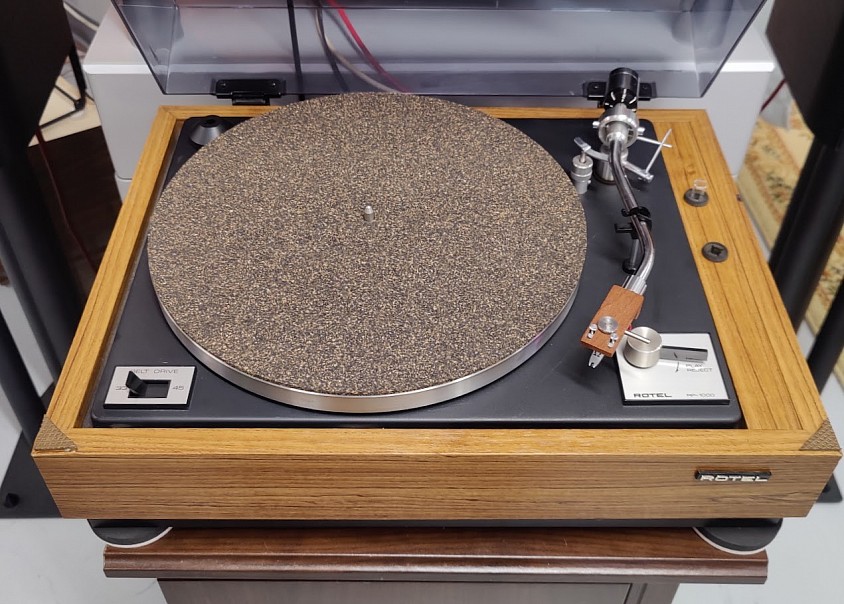

Rotel RP-830
('83-'87) $400
This "under-the-radar" Rotel RP-830 turntable was first released in the mid 80's. It has been fully serviced, fully tested and is in excellent cosmetic and operating condition.
This is a very well-built and thoughtfully designed *manual operation turntable. The teak veneer finish is considered rare because the vast majority of these were produced with a flat black finish.
NOTE: The RP-830 was specifically designed (in-house by Rotel) to be a more affordable alternative to the much more costly turntables such as the Rega Planar Series, The AR Turntable (EB-101), Yamaha GT-2000 and others.

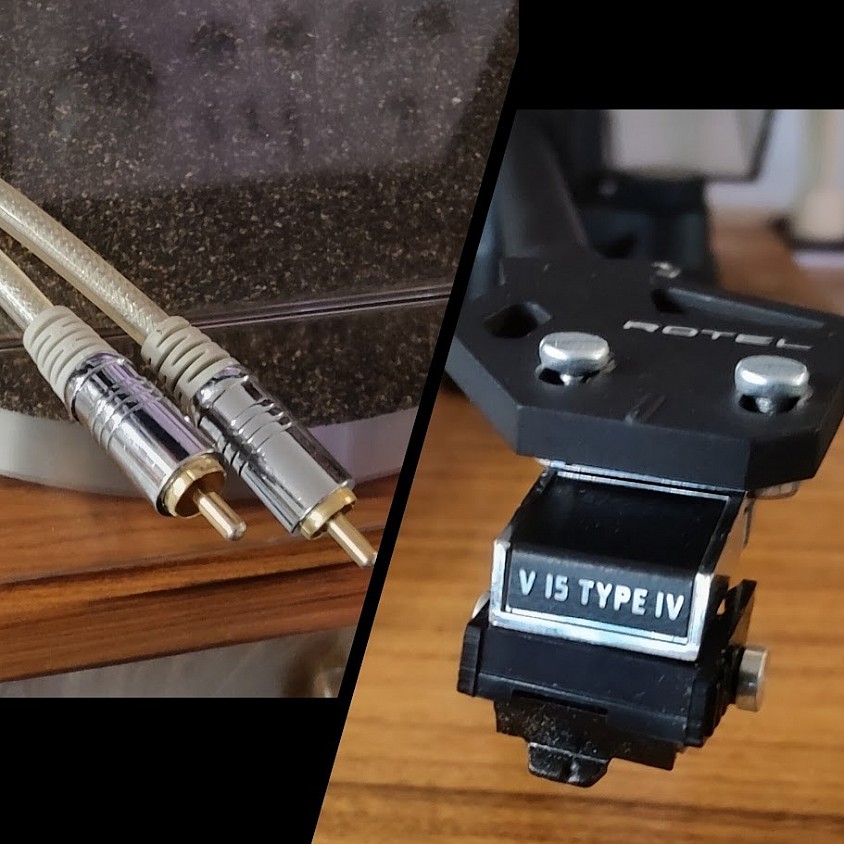

The straight pipe tonearm has the original Rotel headshell that comes with an excellent Shure V15 Type IV cartridge and new VN45VL stylus.
The original phono interconnect cables have been replaced with brand new, high quality AudioQuest audio interconnect cables.

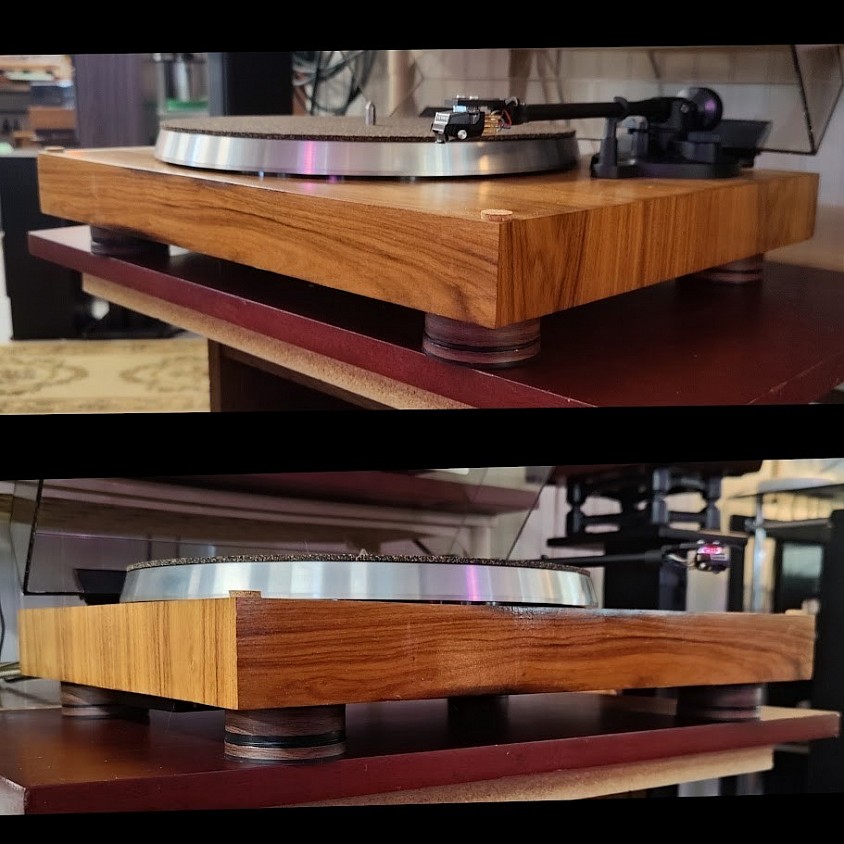

This heavy 15 lb turntable is supported by four, custom, color-matched feet with anti-resonant cushions. The platter has a new aftermarket "Corkey" (rubber & cork) platter mat.The original dust cover has been hand polished and has no cosmetic issues. The spring loaded hinges are also in excellent condition.
Thanks to the 4-pole hysteresis synchronous motor, the speed is dead-on at 33.33 RPM and 45 RPM. There are no frills with this unit. Rotel did not build anything into the design other than the base, motor, tonearm and wired connections. As such, the simplicity and the excellent build quality assures years of trouble-free use with very few concerns about repairs or service issues.
*Manual turntables, are they the "best"?
There is a compelling case to be made that fully manual turntables offer the ultimate high-fidelity vinyl experience. By eliminating the complex internal gears, mechanical linkages, cams, and levers required for automatic start and stop functions, manual designs achieve two major advantages: fewer moving parts to break down and a drastically reduced noise floor because there are no mechanical mechanisms beneath the platter or tonearm to introduce extra resonance or vibration. For purists and audiophiles, the deliberate, tactile ritual of physically placing the needle in the groove is an essential part of the connection to the music. Of course, the choice of cartridge & stylus is critical with any turntable. As mentioned above, the included Shure V15 Type IV has always been considered one of those "cream of the crop" cartridges. As for the stylus, fortunately, even though Shure has been gone for decades, there are many high quality (and correct) replacements available.
Essential specs:
Motor: 4-pole hysteresis synchronous motor
Drive: belt-drive
Speeds: 33 and 45rpm
Wow and flutter: less than 0.03% WRMS
Platter: 3.5 lbs aluminium die-cast
Tonearm: static-balanced, straight pipe arm, oil-damped cueing device, direct-readout stylus gauge counterweight, anti-skating device
Dimensions: 17"W x 6"H x14"D
Weight: 15 lbs
+++++++++++++++++++++++++++++
+++++++++++++++++++++++++++++

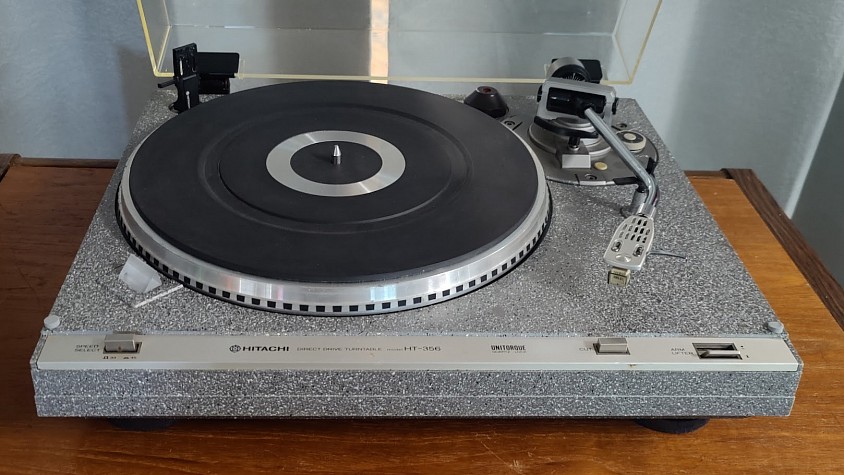

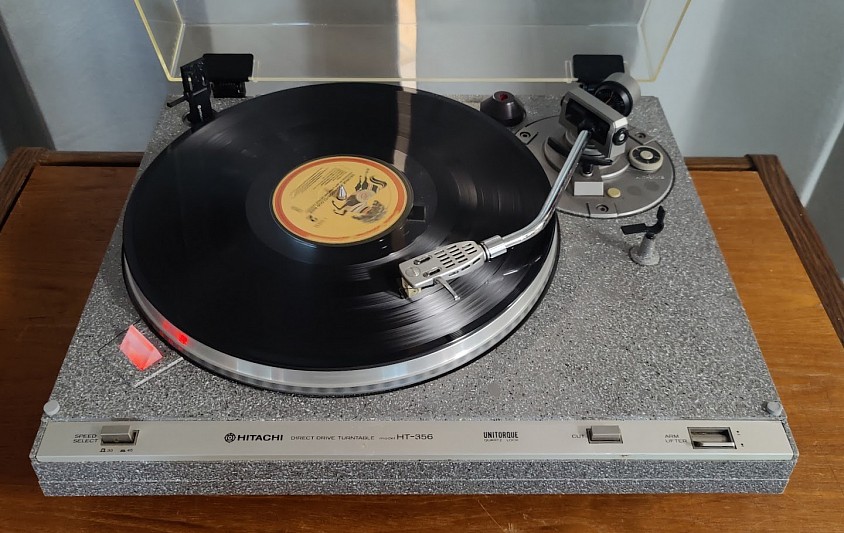

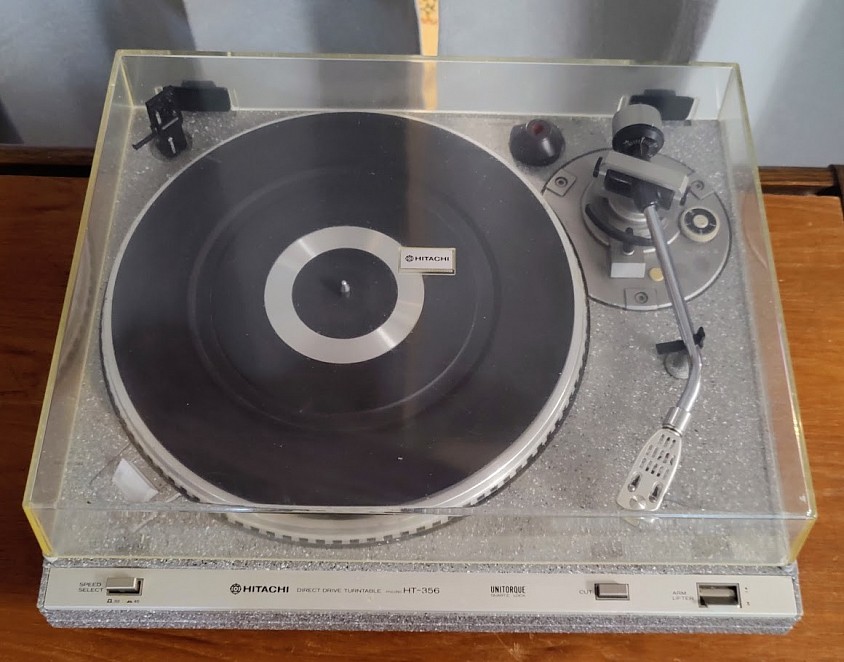

Hitachi HT-356
(late 70's) $275
Hitachi...a name some don't recognize when talking about vintage HiFi. Regardless, they were a major player in Japanese electronics back in the day.
This Hitachi HT-356 turntable has been completely serviced and in excellent cosmetic condition. Fully operational, it's a direct-drive, 2-speed, semi-automatic deck with a topside strobe that easily gives you a visual on the accurate speed.
Its main feature would be the quartz lock which keeps the speed completely accurate without worrying about adjustments. The motor is a highly reliable brushless DC servo attached directly to the platter itself.

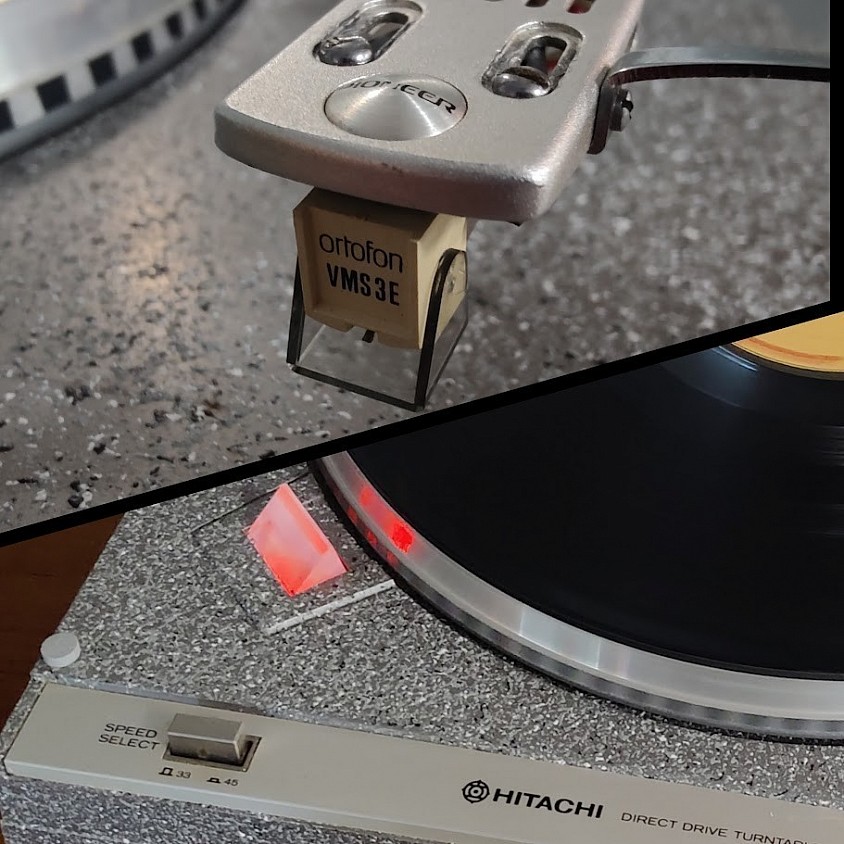

The S-shaped tonearm has a universal headshell equipped with a nice Ortofon VMS-3E cartridge and new stylus. A second (original) Hitachi headshell (sans) cartridge is included.
The plinth (base) has a unique and customized graystone textured coating. The original dust cover has reliable and strong metal hinges.
The original factory feet have additional custom 1/2" thick, anti-resonant foam cushions.
Features include:
~Quartz lock PLL servo motor
~auto-return
~auto-cut
~anti-skating
~strobe
~damped cueing.
Specs:
Type: 2-speed direct drive system
Motor: brushless dc servo direct drive motor
Speeds: 33 and 45rpm
Speed change: electronic
Wow and flutter: 0.03% wrms
Frequency range: 10 to 25,000Hz
Dimensions: 17"W x 15"D x 5.5"H
Weight: 13 lbs
About Hitachi...
Unknown to many people, Hitachi (like Sanyo and Toshiba) were major Japanese tech firms that either directly built systems for other electronic companies or had Hitachi high end parts (like output transistors) inside the competitors products. Class G is just one example of Hitachi's leadership in vintage audio technology. Power MOS FET amplifiers, R&P 3-head system cassette decks, Uni-torque turntable motors and gathered-edge metal cone speakers are just some of the others. There's a lot more. Hitachi of Japan was one of the companies that made their own filter caps, transformers, etc...in-house. They also supplied many other famous names with Hitachi-made components (like Pioneer, Sony, even Marantz used Hitachi parts.)
++++++++++++++++++++++++++
++++++++++++++++++++++++++

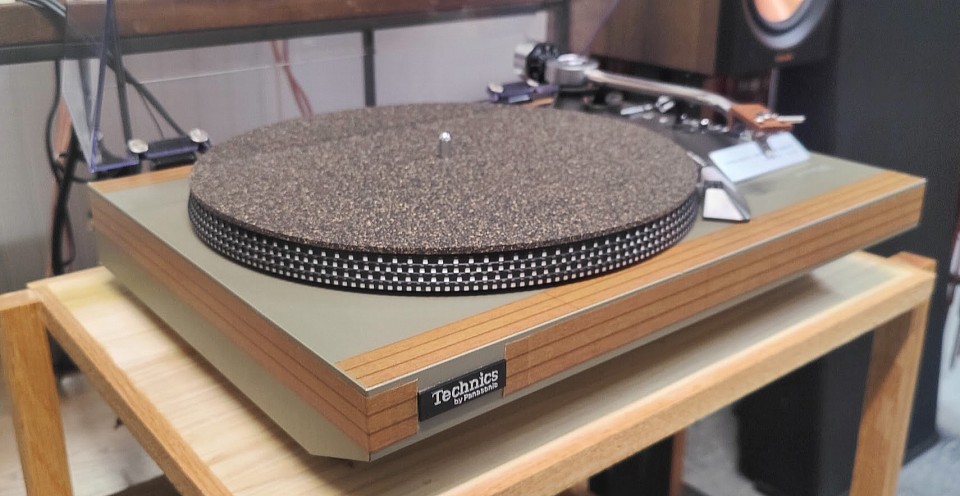

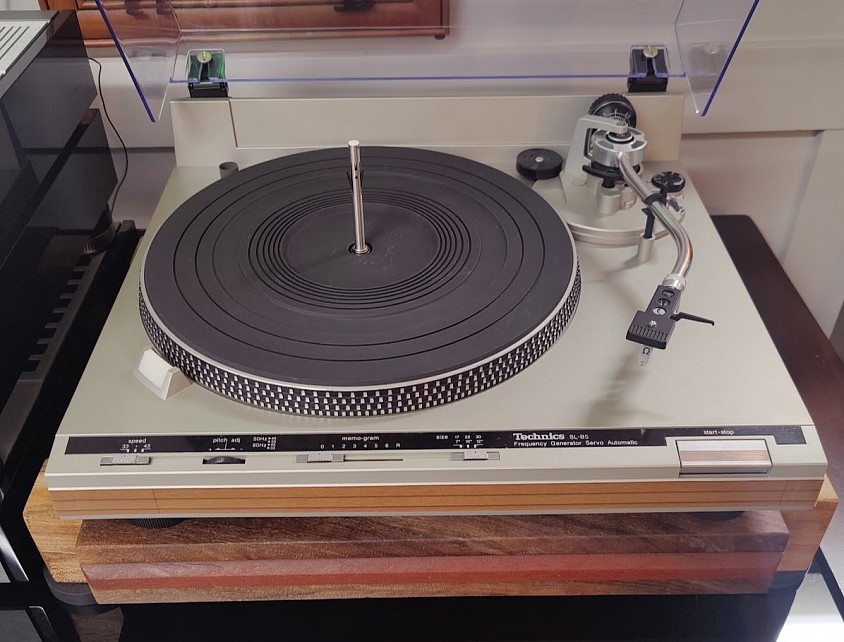

Technics SL-B5
(1980) $425
In pristine cosmetic condition, completely bench serviced and in perfect operating condition, this highly reliable Technics SL-B5 is a fully automatic, belt-drive turntable that comes with both the extremely rare *stacking spindle and the single play spindle. The original Technics headshell has a brand new Ortofon Omega cartridge and stylus (one of our favorite cartridges that features both excellent tracking characteristics with an affordable price as well).
Bench services included fresh lube on all moving parts and chemical deoxit for the speed trim pots. The cover was hand polished using the Novus system with #2 and #3 "jewelers" paste.
*NOTE: this very rare specialized "umbrella-style" multi-play stacker spindle is required because the SL-B5 (like all the Technics models with stacking capability) does not use an overhead stabilizer arm. The spindle itself contains internal metal teeth that expand outward to hold the rest of the stack while dropping the bottom-most LP record. Generally speaking, a lot of the previous owners would accidentally lose the spindle. The most recent sales on eBay for this spindle alone would indicate that they can easily fetch up to $100.
This beautiful turntable is capable of handling up to 4 LPs at a time. Although the manual says you can stack up to six records, we strongly suggest a maximum of four. Whether you stack multiple records or use the single play spindle, you can play the record(s) individually in succession or, with the memo-repeat function, records can be played multiple times. This turntable also comes with a brand new (correct) belt.The original oversized dust cover is in pristine condition. The reason for its larger size (compared to most other turntables) is so it can accommodate the taller stacking spindle when the cover is closed.Essentially, the SL-B5 is a classic vintage turntable that, like all the Technics tables, was built with the expected excellence that Technics is known for.
Features include:

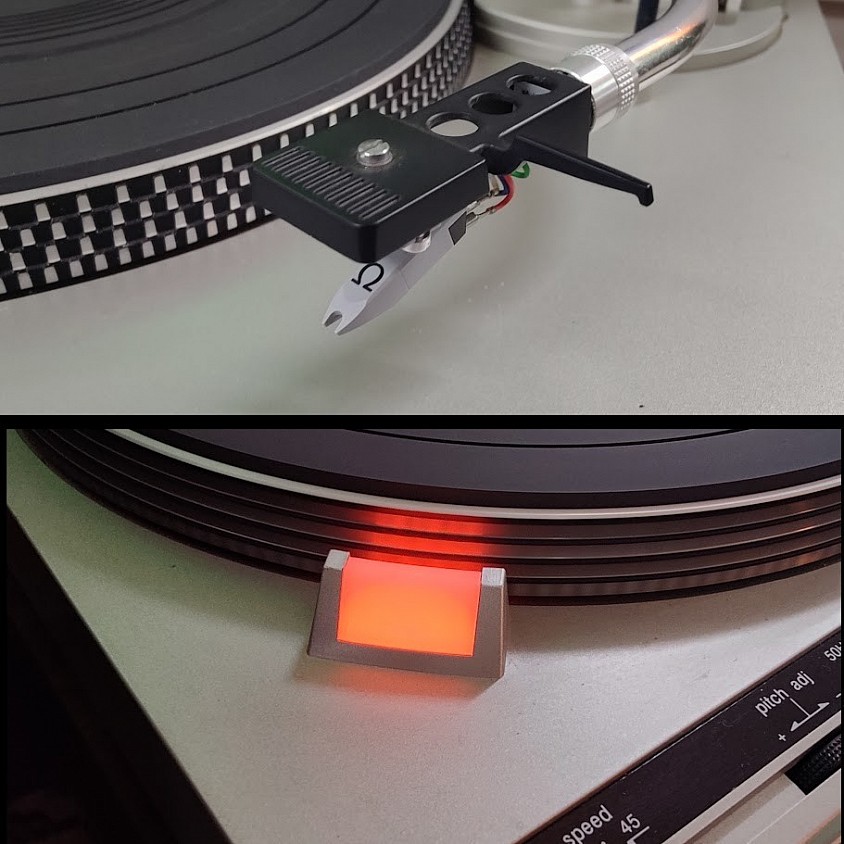

~Easy to read backlit strobe
~pitch/speed controls
~speed selector
~Memogram repeat function
~record size selector
~45 RPM adapter
Specs:
Frequency Response: 20Hz~25kHz
Speeds: 33.3 RPM / 45 RPM
Wow & flutter: 0.045%
Platter: Aluminum Die-Cast, 12" diameter
Dimensions: 17"W x 14.5"D x 7"H
Weight: 11 lbs
+++++++++++++++++++++++++++
+++++++++++++++++++++++++++

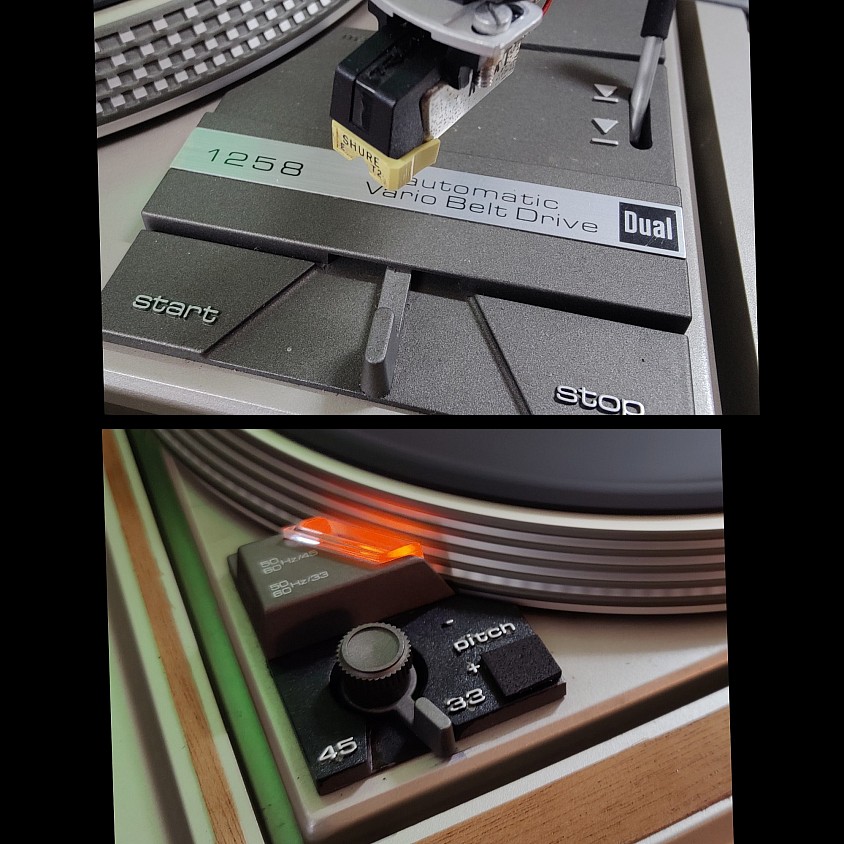

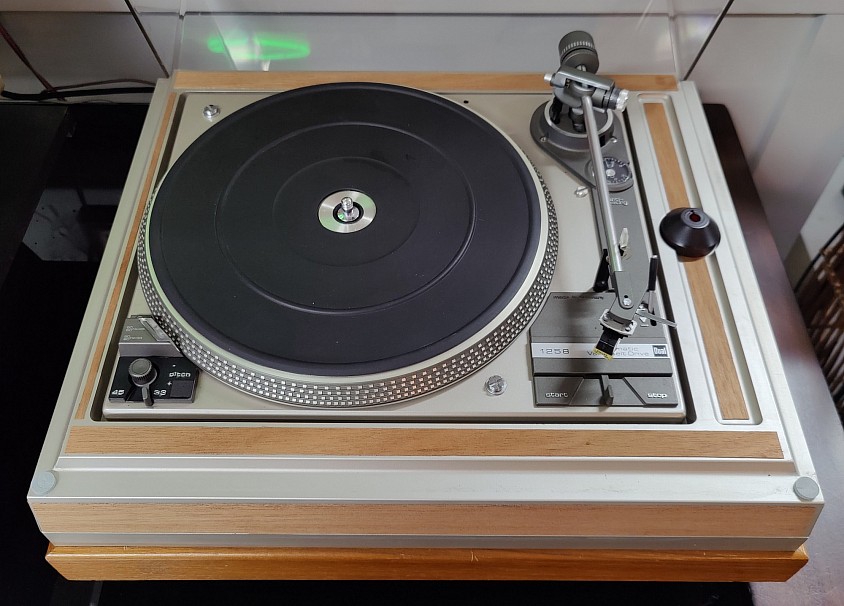

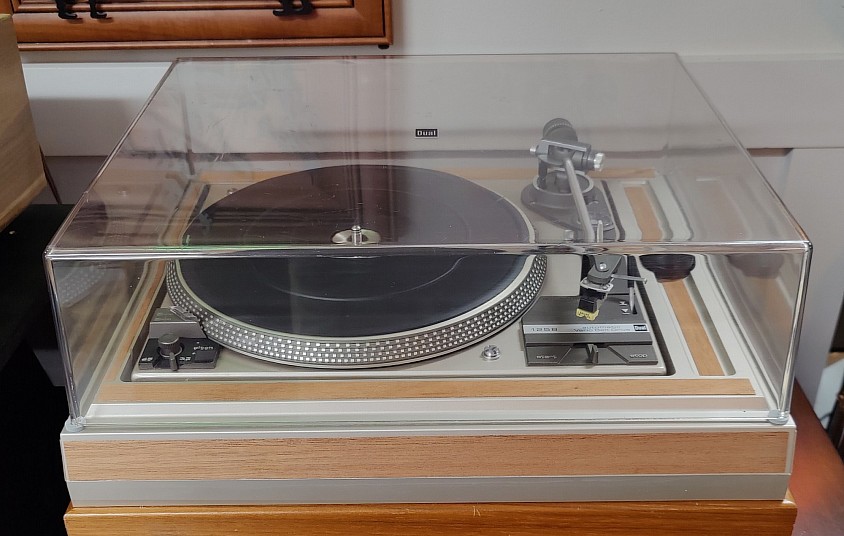

Dual CS-1258
(Germany '81-'84) $300
In excellent cosmetic condition, fully serviced and fully tested, this Dual CS-1258 is a fully automatic turntable with the single play spindle. Highly customized with real timber-wood panels, the original dust cover is pristine. Servicing included installing a new pitch belt, lube all interior moving parts and calibrate internal speed trim pots.
The topside strobe allows for minor speed adjustments if ever needed.
This turntable features the highly praised Dual ULM (ultra- low mass tonearm). While highly effective at reducing tonearm weight, this design choice required a specific dual-adapter if users wanted to mount standard 1/2" cartridges. This adapter comes with this CS-1258.
Mounted on the tonearm is a Realistic-branded Shure R47XT cartridge and Shure N72EJ correct replacement stylus (tracking Force approximately 2 grams with a frequency response rated at 10-28,000 Hz)
The CS-1258 was one of the models that Dual released in the early 80's; Introduced during a highly turbulent era for the iconic Black Forest manufacturer—just prior to Dual's 1982 bankruptcy and eventual takeover by French electronics giant Thomson SA. This was also a time when Dual was moving away from older idler-drive models. The platter belt design was determined to be much quieter and less prone to rumble when compared to the idler drive design. Of course by the time Dual made the design change, belt-driven turntables were everywhere and widely accepted to begin with.

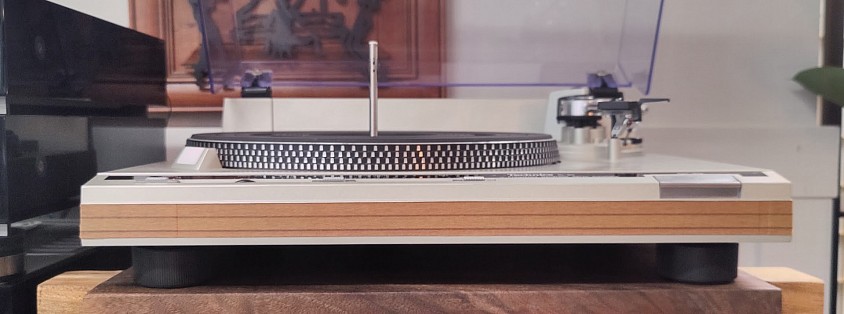

Although the chassis (base) is made of poly-injected material, there are real timberwood accents on the plinth that give it a much more aesthetic appeal.
Specs:
Motor: 16 Pole precision belt drive using a flat belt drive system (DUAL SM-100)
Start Up Time 2-3 seconds @ 33.33
Platter Non-Magnetic
Pitch Control 6% at both speeds
Strobe light on platter
Wow & Flutter 0.08% DIN 0.06% WRMS
Rumble Unweighted: 46 dB Weighted: 68 dB
Tonearm ULM (Ultra Low Mass) mounted in a 4 point gimbal low friction tip bearing
+++++++++++++++++++++
+++++++++++++++++++++
